Multiple Modes Streaming Camera

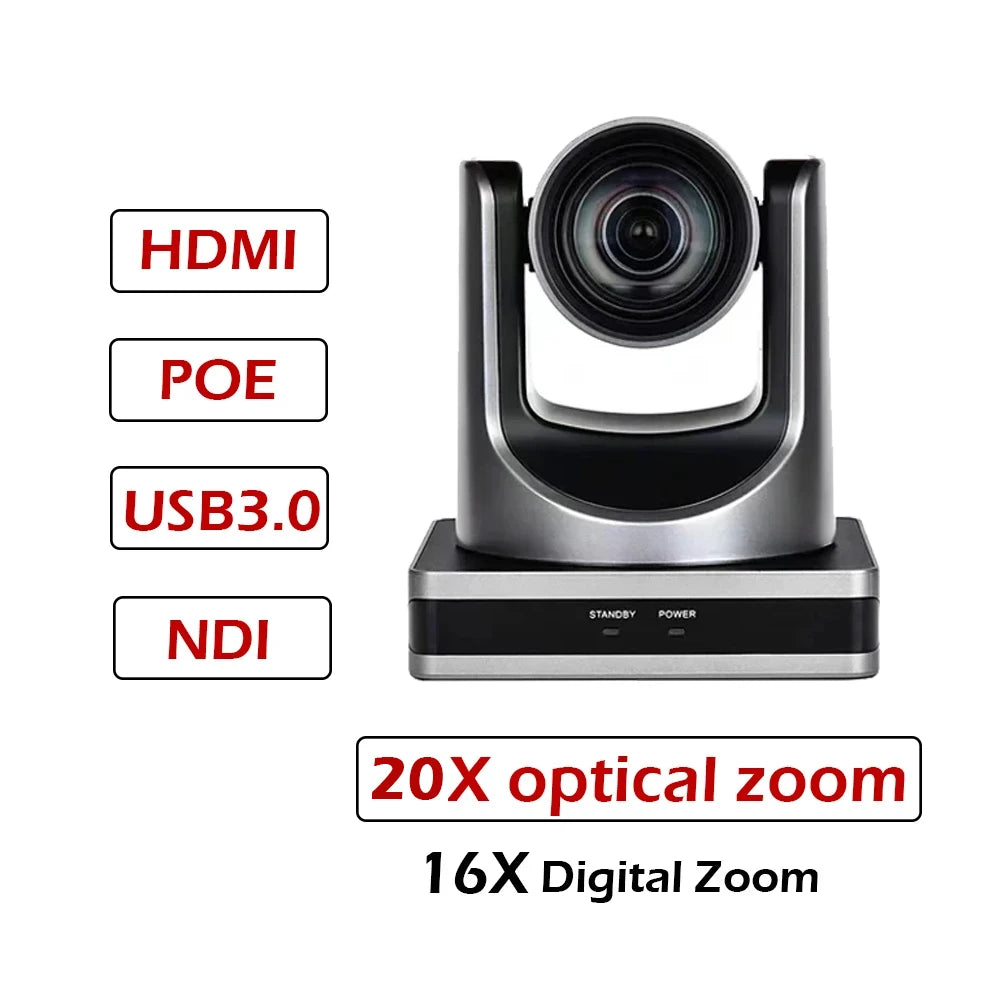

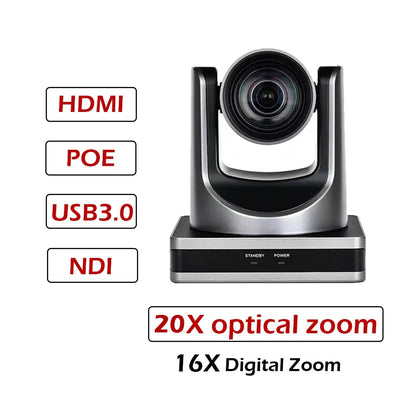

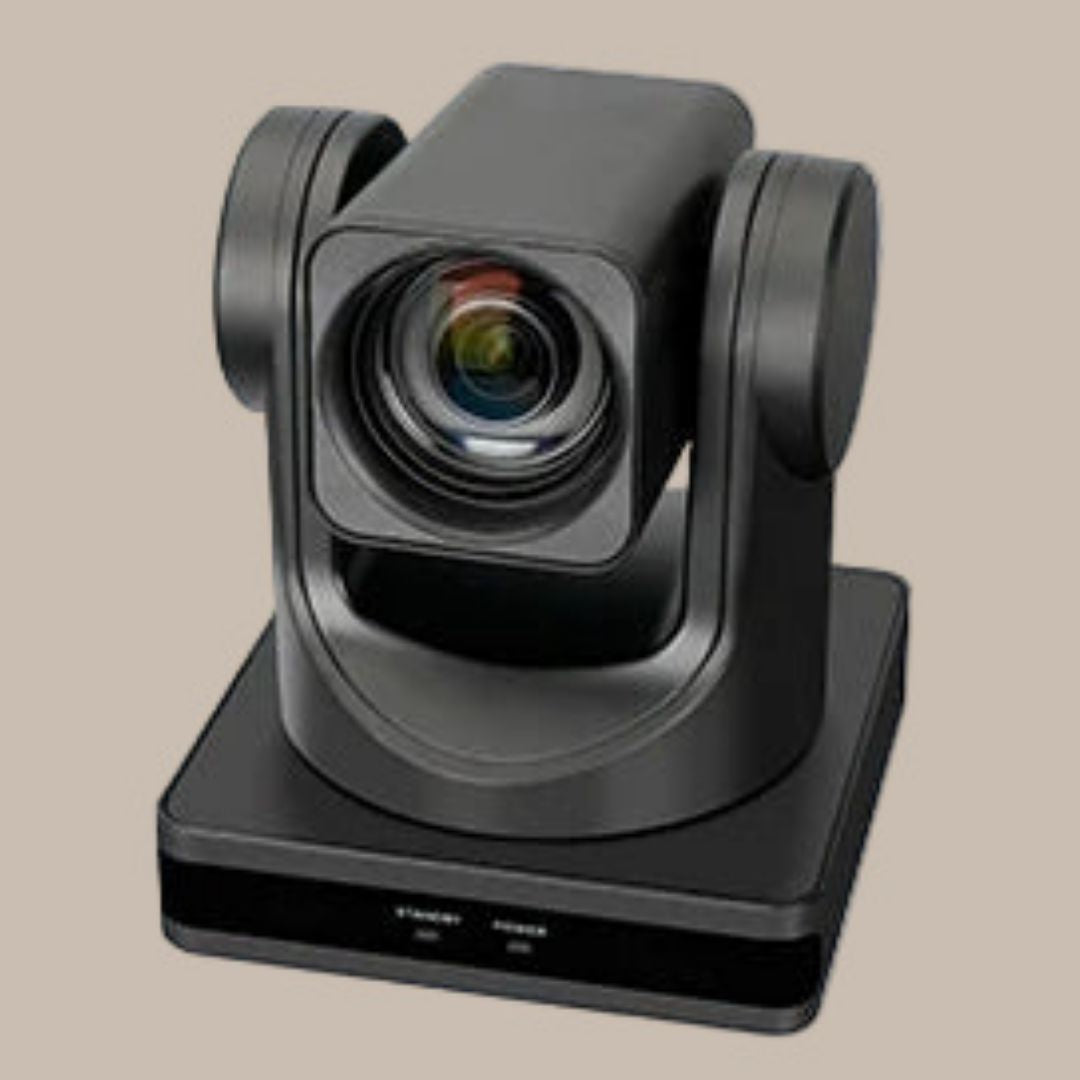

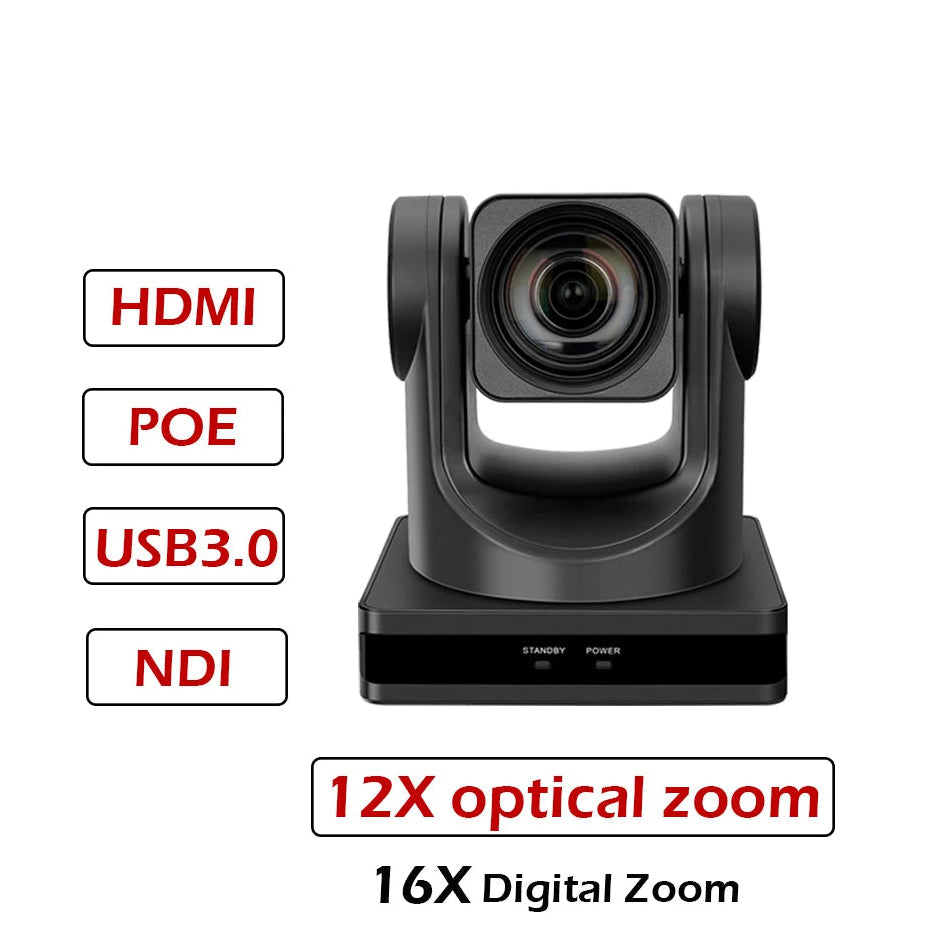

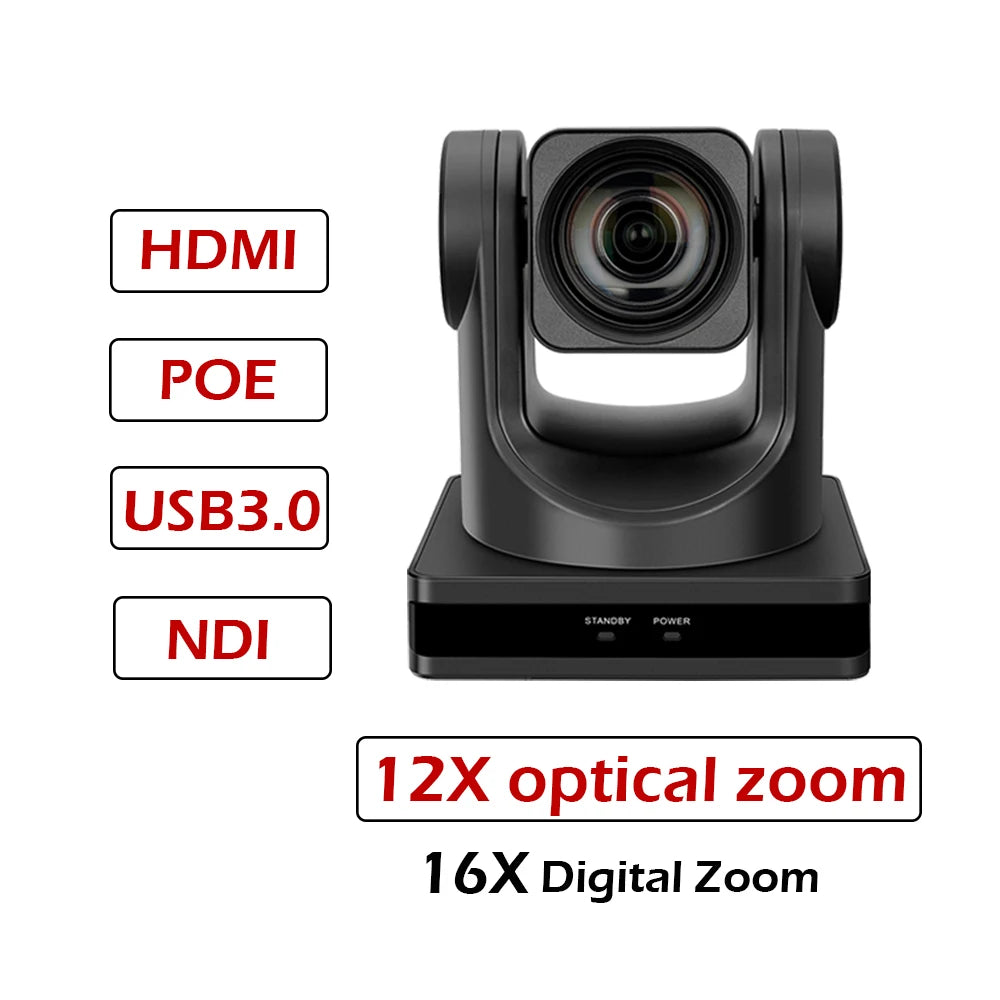

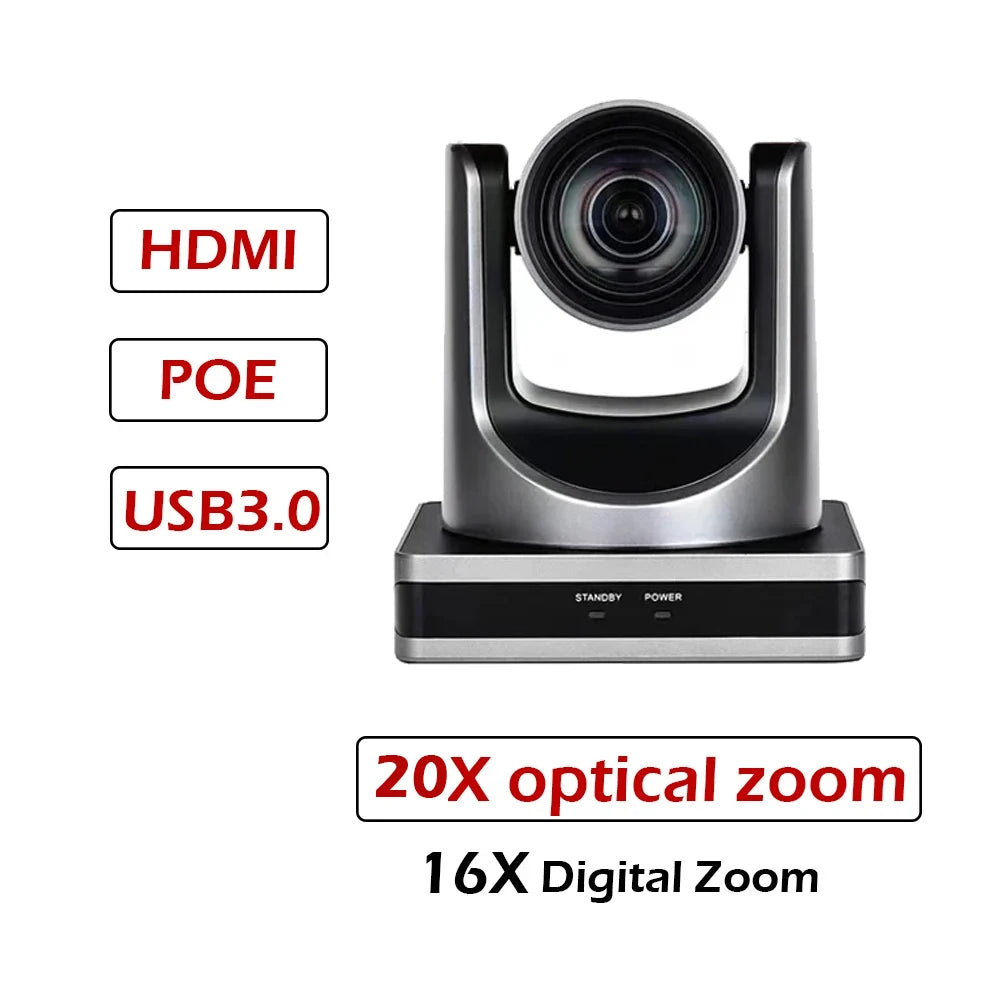

12X/20X Optical Zoom PTZ Camera 1080P – USB 3.0 & Live Streaming Camera for Broadcast, Conference, and Events

Key Features
✅ Full-Function USB Interface – Compatible with USB 3.0 and 2.0; supports audio, compressed video, and UVC v1.1–1.5 protocol.

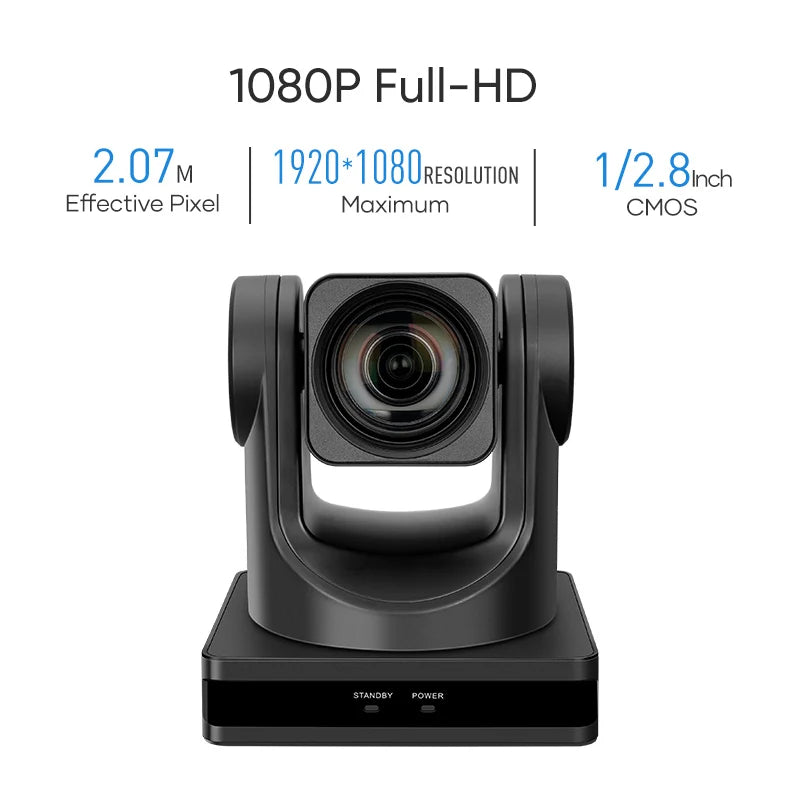

✅ 1080P Full HD – Panasonic 1/2.8" HD CMOS sensor with 2.07M effective pixels, max resolution 1920×1080.
✅ Ultra High Frame Rate – Output up to 60fps under 1080P for smooth video.

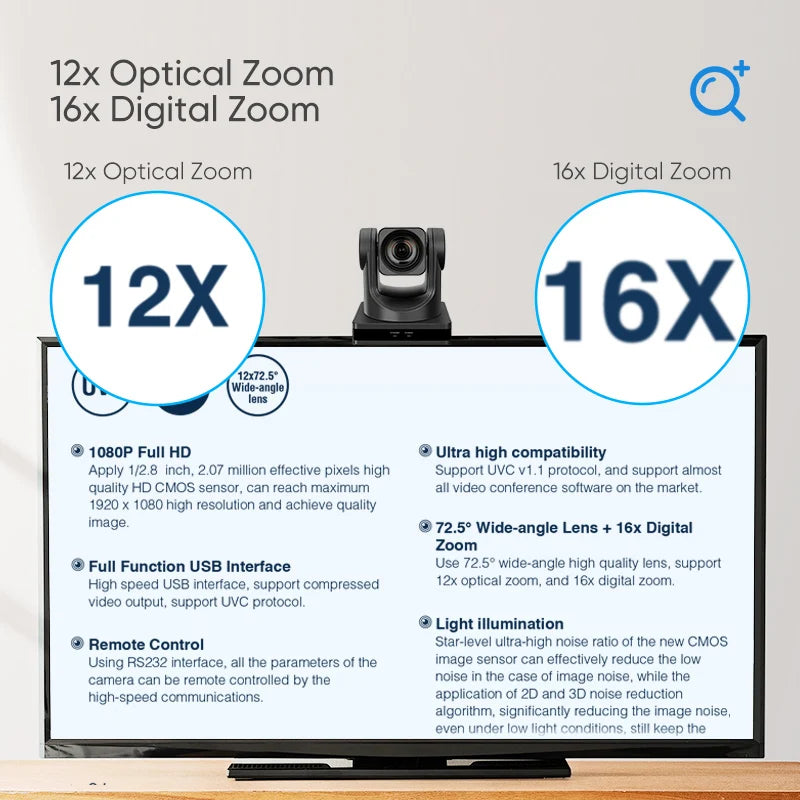

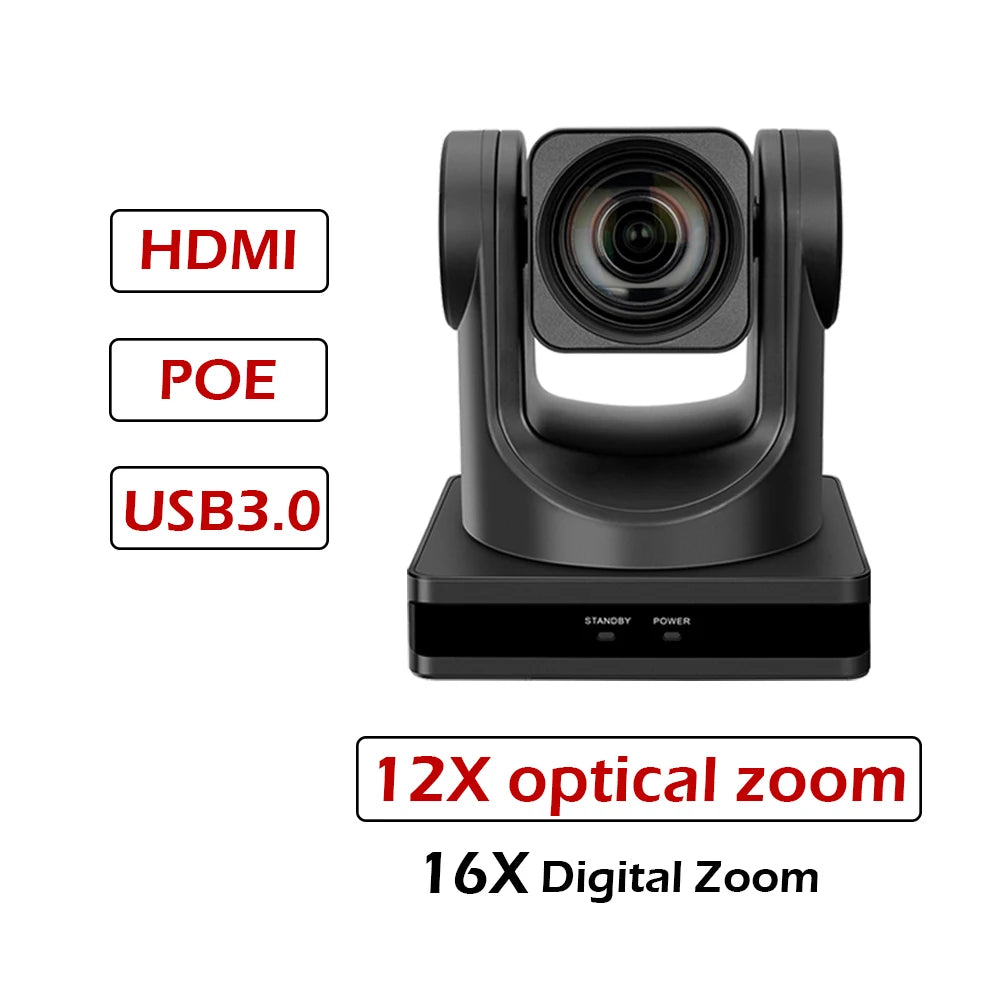

✅ 12X Optical Zoom + 16X Digital Zoom – 72.5° wide-angle lens for versatile shooting.
✅ Low-Light Performance – 2D/3D noise reduction ensures clean images even in ultra-low illumination.
✅ PoE Support – Power, video, audio, and control through a single cable.

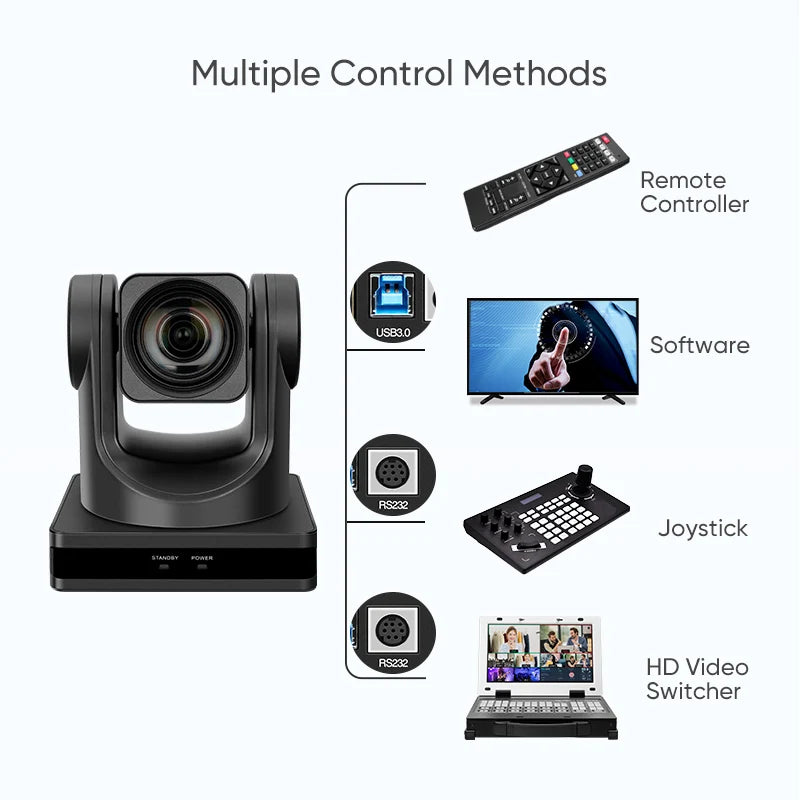

✅ Remote Control – Multiple control options via RS232, RS485, network, and USB.

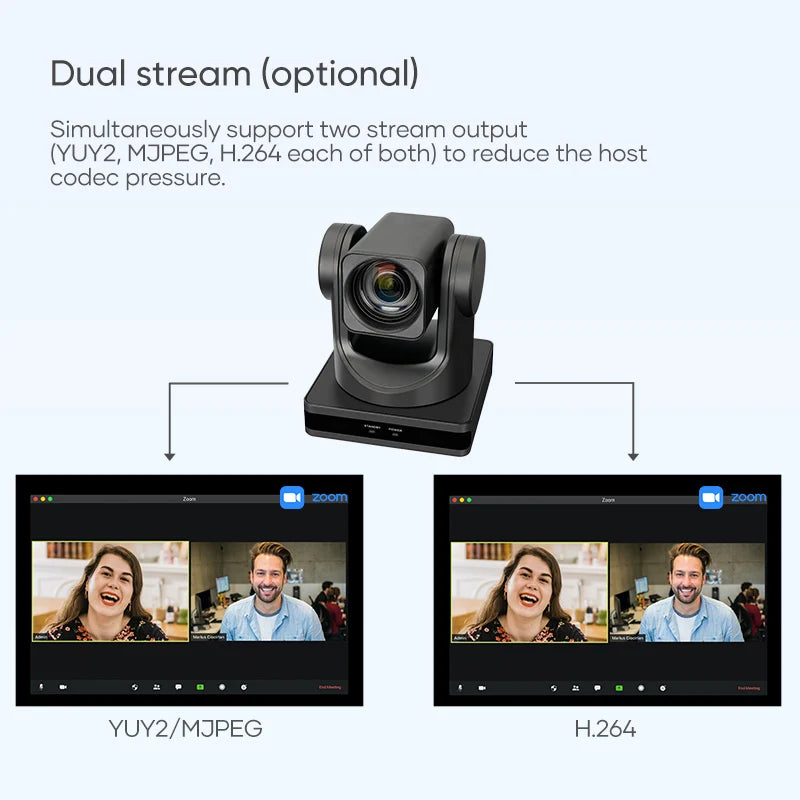

✅ Multi-Stream & Encoding – H.264 Slice/SVC encoding; dual-stream support reduces host load.
✅ Flexible Interfaces – HDMI (optional), USB 3.0, and network interfaces can output 1080P simultaneously.
✅ Multiple Power Modes – USB 5V, 12V adapter, or PoE supply for convenience.

Specifications
Model: USB3.0 HD Video Conference Camera
Video System: 1080P60 / 1080P50 / 1080P30 / 1080P25 / 720P60 / 720P50
Sensor: 1/2.8" CMOS, 2.07M pixels
Lens: 12x, f3.5mm–42.3mm, F1.8–F2.8
Digital Zoom: 16x
Minimum Illumination: 0.5Lux @ (F1.8, AGC ON)
Shutter: 1/30s – 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual, 2500K–8000K
Backlight Compensation: Supported
Digital Noise Reduction: 2D & 3D
Video S/N: ≥55dB

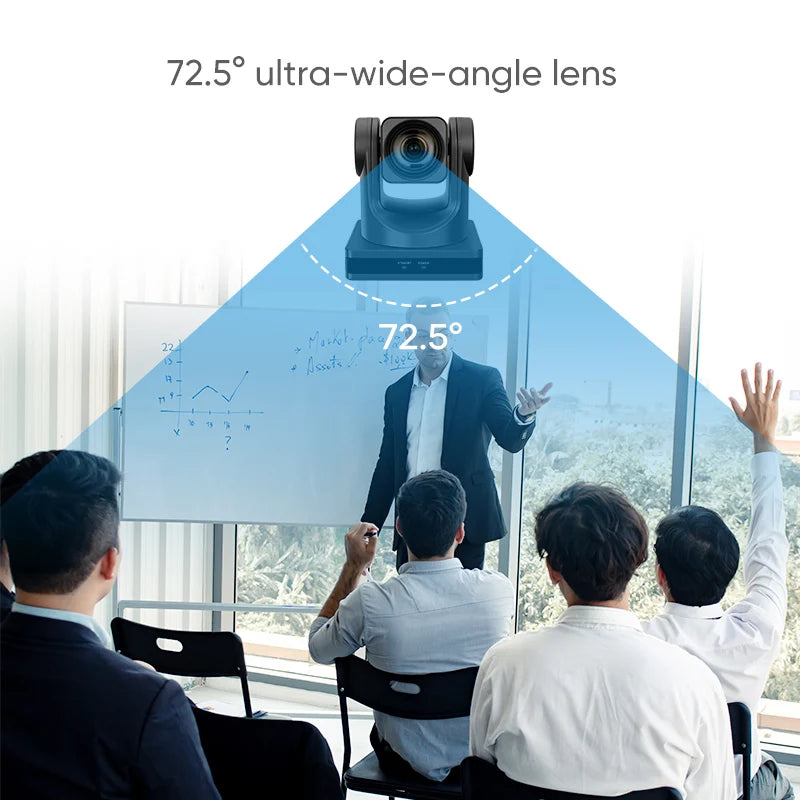

Horizontal Angle of View: 72.5° ~ 6.9°
Vertical Angle of View: 44.8° ~ 3.9°

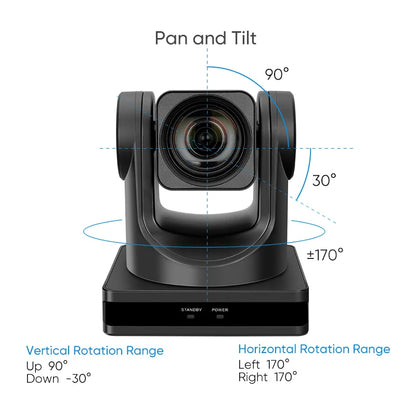

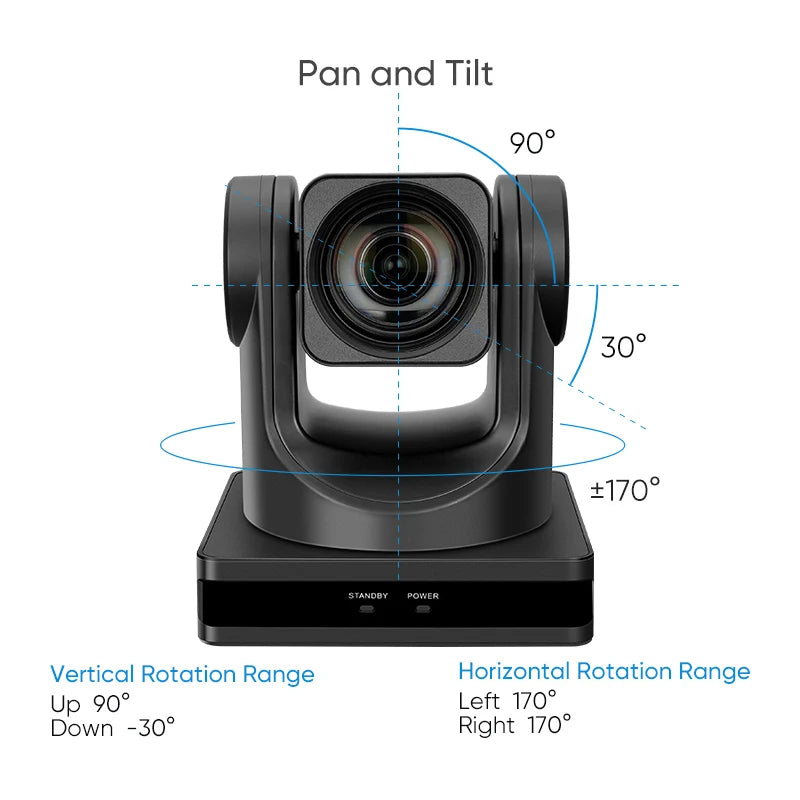

Horizontal Rotation Range: ±170°
Vertical Rotation Range: -30° ~ +90°
Pan Speed: 2.7°–35.7°/s
Tilt Speed: 2.7°–31.5°/s
H & V Flip: Supported
Image Freeze: Supported
Number of Presets: 255
Preset Accuracy: 0.1°

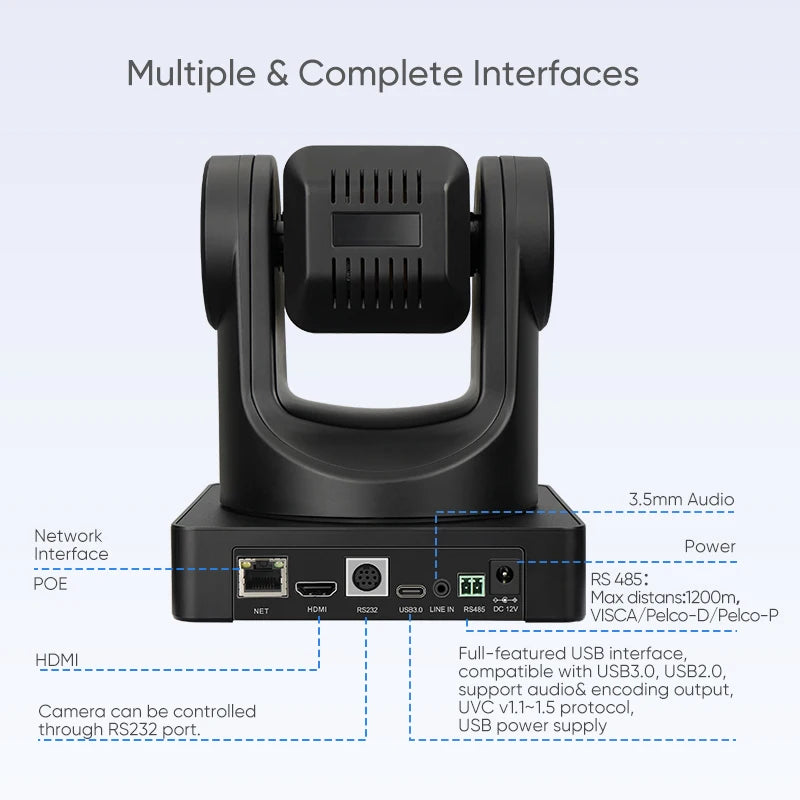

Interface & Connectivity
✅ USB Interface: 1x USB 3.0 Type-C
✅ HDMI Output: 1x HDMI 1.4b
✅ Network: 1x RJ45 10M/100M Ethernet
✅ Audio: 1-ch 3.5mm Line In
✅ RS232: 8-pin Min DIN, Max Distance 30m
✅ RS485: 2-core Phoenix port, Max Distance 1200m
✅ Power Jack: DC IN 12V / USB B 5V / PoE

General Specs
Input Voltage: DC 12V / DC 5V / PoE (802.3af)
Input Current: 12V 1.0A(max) / 5V 1.5A(max)
Operating Temp: -10°C ~ 40°C
Storage Temp: -40°C ~ 60°C
Power Consumption: 12W (max)
MTBF: >30,000 hrs
Size: 144mm × 144mm × 167.9mm

Perfect For
✅ Professional Conference Rooms & Corporate Streaming
✅ Online Education & Webinar Live Streaming
✅ Event Broadcasting & High-End Video Production
